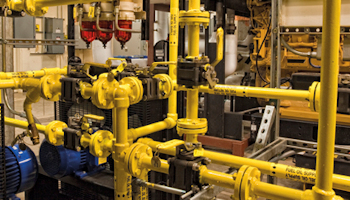

LFS is active in the following industries:


About us

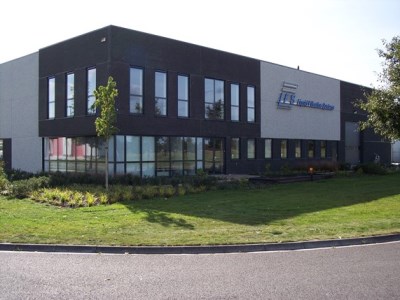

LFS was founded September 1, 1992 with the aim of solving problems in industrial and process filtration. Started in rented facilities with a surface of 200 m2, soon this became too small and was enlarged to 600 m2. In 2009 we became master in our own house by building new production and office facilities in Klazienaveen. Started with a surface of 1000 m2 and enlarged to 1400 m2 a couple of years later. In 2017 the next door building was bought enlarging the production surface till 2400 m2.


The production includes wound filtercartridges, meltblown (polyspun) filtercartridges, pleated filterelements, PP, PE and PVDF filter housings. LFS has many possibilities for the supply of a large range of filterbags and stainless steel filter housings also in sanitary execution.
In the course of over 25 years existence a large network of dealers was set up all over Europe.

ISO 9001:2015 certified.

LFS produces:

  • Plastic filter housings for low and high flows
  • Wound filtercartridges with various core possibilities
  • Meltblown filtercartridges with and without core
  • Pleated and high flow filters

and stands for:

  • Quality
  • Fast delivery
  • Flexability
  • Service
Factory

FILTER HOUSINGS



LFS has many years experience in the production of plastic filter housings for various industrial applications and a great choice in stainless steel housings. Also the making of skid and duplex units belong to the possibilities. LFS distinguishes itself from other manufacturers by making complete calculations of the influences of temperature, pressure and medium.

Advantages:

  • Suitable for many applications
  • low maintenance
  • Cheap solution in many cases
  • High chemical resistance
  • Solutions based on customer requirements
filterhousings

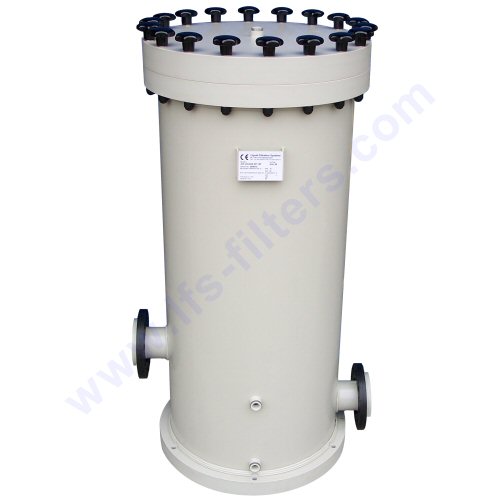

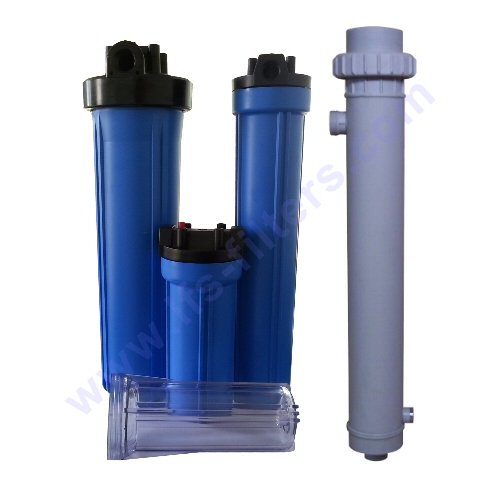

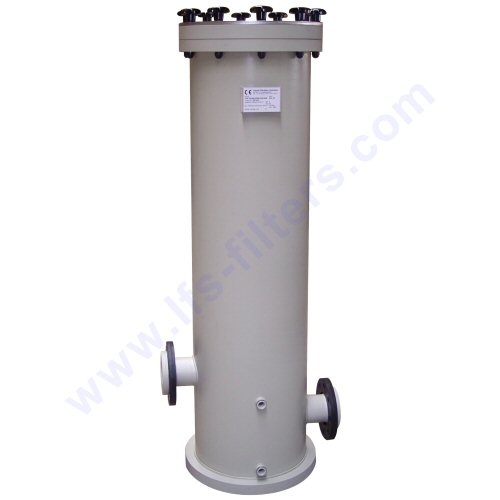

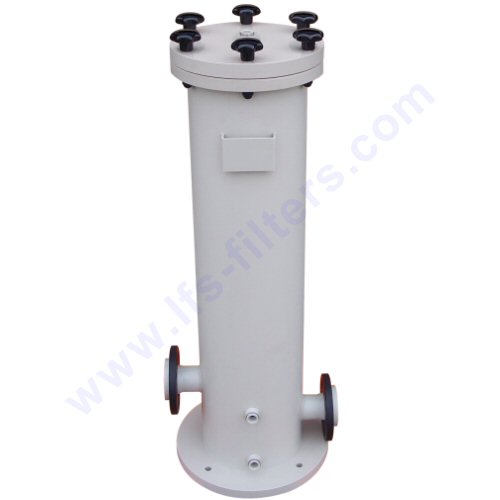

Cartridge filters

Cartridge filters are manufactured in Polypropylene, Polyethylene and PVDF depending on application, temperature, medium etc. All length are available in executions of 1 till 120 filter cartridges. Special customer wishes can be taken into account. The filter housings are available for all possible filter adaptors as DOE, C2, C3, C7 and C8.

Further info..

Advantages:

  • Different kind of plastics for practical all applications
  • Postion of inlet and/or outlet can be changed
  • Standard operating pressure 6 and 10 bar.
  • In accordance with the PED standards
  • Can be CE marked

Technical details:

Material PP, PE, PVDF
O-ring FTP, EPDM, PTFE coated
Cartridge length 10" to 60"
number of cartridges 1 to 120 pcs
Adaptor DOE, C0, C2, C3, C7, C8
Connections Flens ANSI/DIN, BSP/NPT (M/F)
Pressure at 40ºC* 6 or 10 bar
Max. temperature* PP 60ºC
PE 50ºC
PVDF 90ºC
* Chemical weakening if any not taken into account

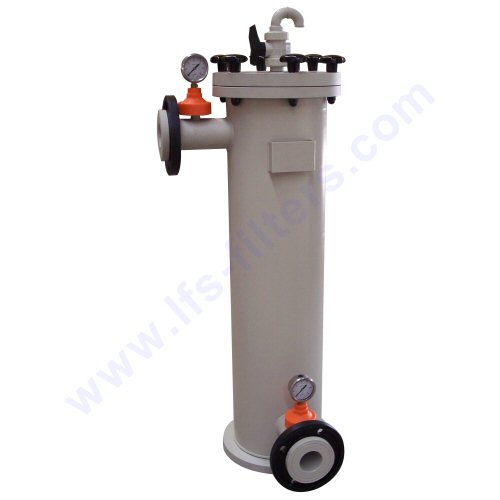

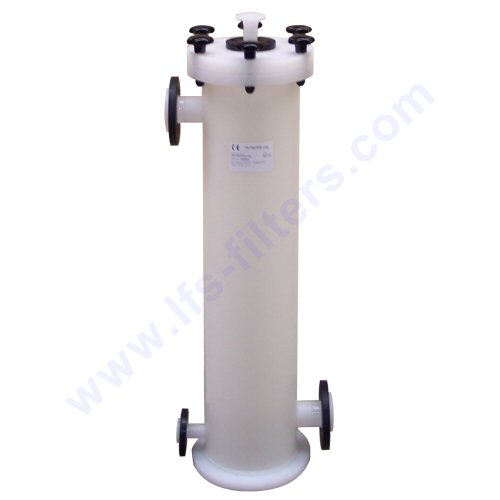

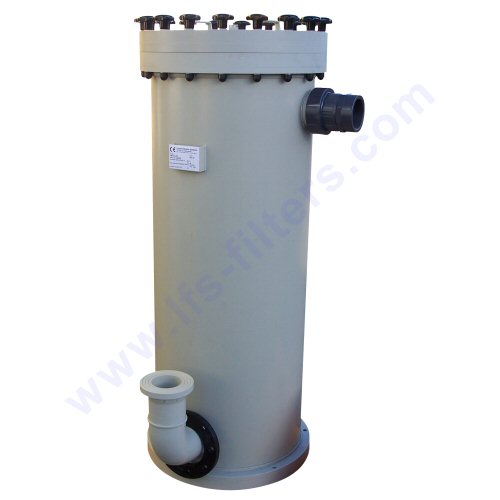

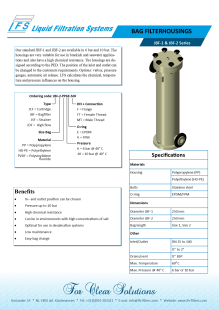

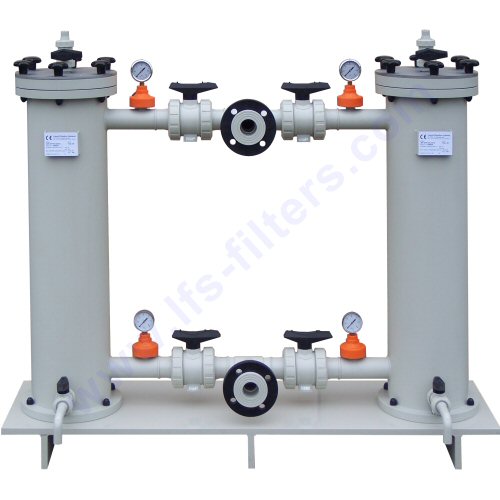

Bag filters / Strainers

The standard sizes 1, 2, 3 and 4 or a customer specified size can be combined to multiple units. Optional are multi bag housings. The maximum available size is 14 filterbags size 2 in one housing. Special customer wishes can be taken into account. The large choice in filter bags as to material and filter rating makes this a cheap solution for many applications. Strainers are available in various executions and capacities. Suitable as e.g. prefiltration for cooling water. With removable basket for easy cleaning. Perforation (starting with 3 mm)

Further info..

Advantages:

  • The filter housings are suitable for all standard available filter bags
  • Different kind of plastics for practical all applications
  • Postion of inlet and/or outlet can be changed
  • Standard operating pressure 6 and 10 bar.
  • In accordance with the PED standards
  • Can be CE marked

Technical details:

Material PP, PE, PVDF
O-ring FTP, EPDM, PTFE coated
standard sizes 1, 2, 3, 4
Baskets 1 to 14 pcs
Connections Flens ANSI/DIN, BSP/NPT (M/F)
Pressure at 40ºC* 6 or 10 bar
Max. temperature* PP 60ºC
PE 50ºC
PVDF 90ºC
* Chemical weakening if any not taken into account

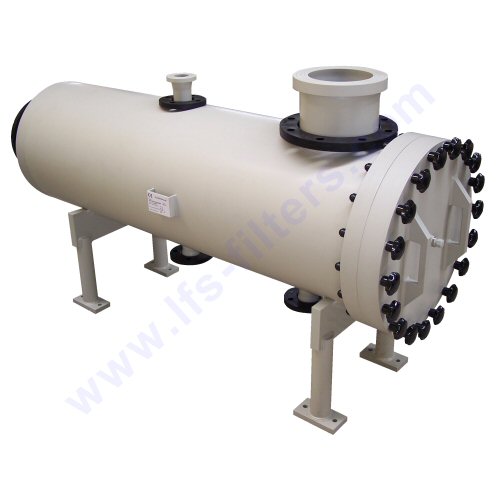

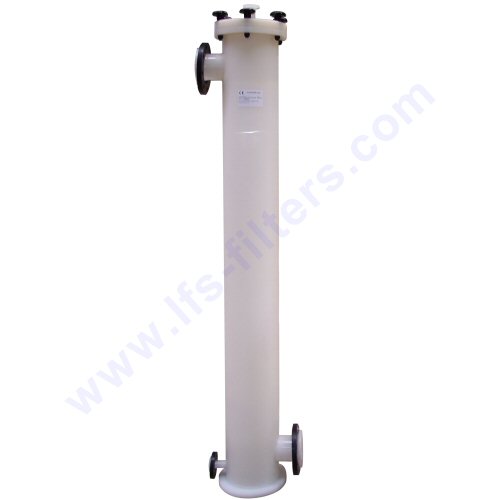

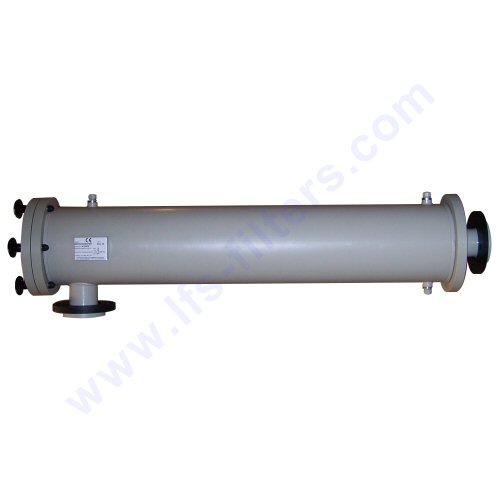

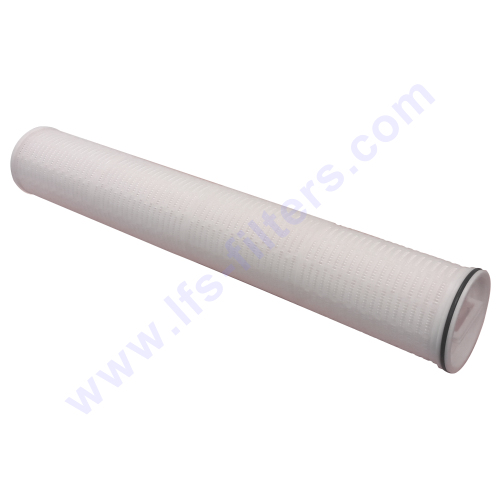

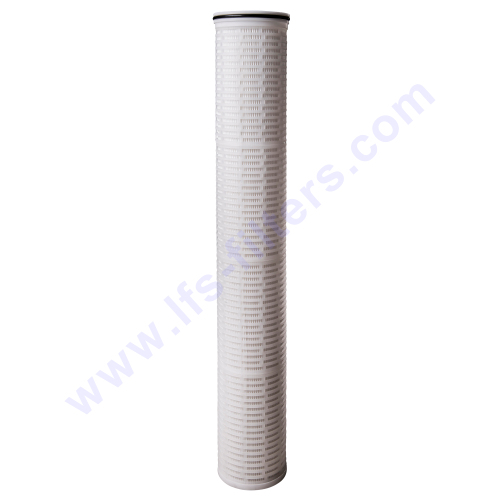

High flow

The demand for high flow elements is fast growing because of the many advantages against other filtration systems. LFS makes high flow housings suitable for all commercial available elements so the customer is not dependend of a specific supplier. Together with the customer LFS searches for the right application and construction of the filter housing.

Further info..

Advantages:

  • Compact dimensions
  • Quick change of filter elements
  • Standard operating pressure 6 and 10 bar.
  • In accordance with the PED standards
  • Can be CE marked

Technical details:

Material PP, PE, PVDF
O-ring FTP, EPDM, PTFE coated
Cartridge length 20" to 60"
Number of elements 1 to 14 pcs
Connections Flens ANSI/DIN, BSP/NPT (M/F)
Pressure at 40ºC* 6 or 10 bar
Max. temperature* PP 60ºC
PE 50ºC
PVDF 90ºC
* Chemical weakening if any not taken into account

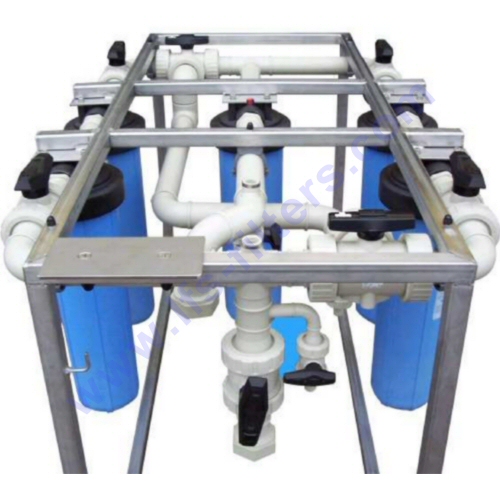

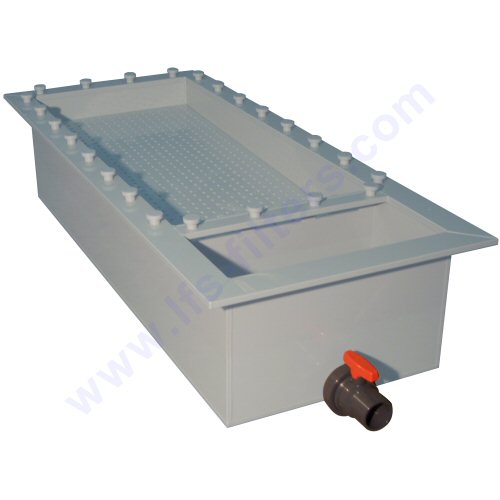

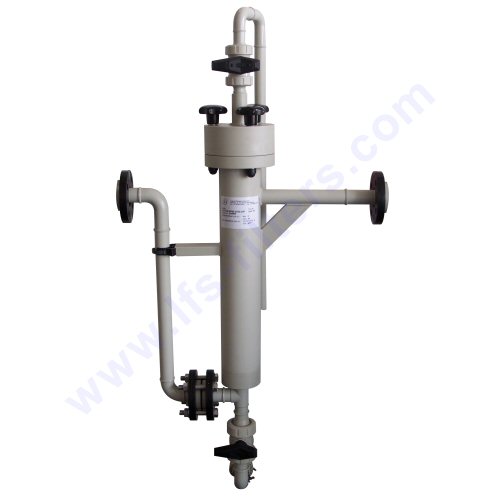

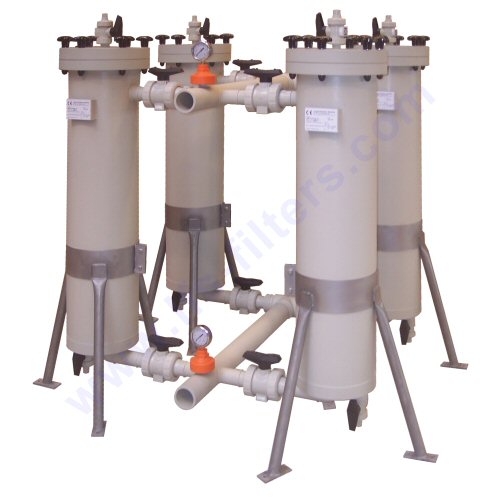

Specials

One of the strongest sides of LFS is the flexability in making filter housings entirely to customer specifications. This may be a small alteration as e.g. different positions of connections or a complete new design based on the local situation. For this we use a 3D drawing program for a better visualisation.

Projects..

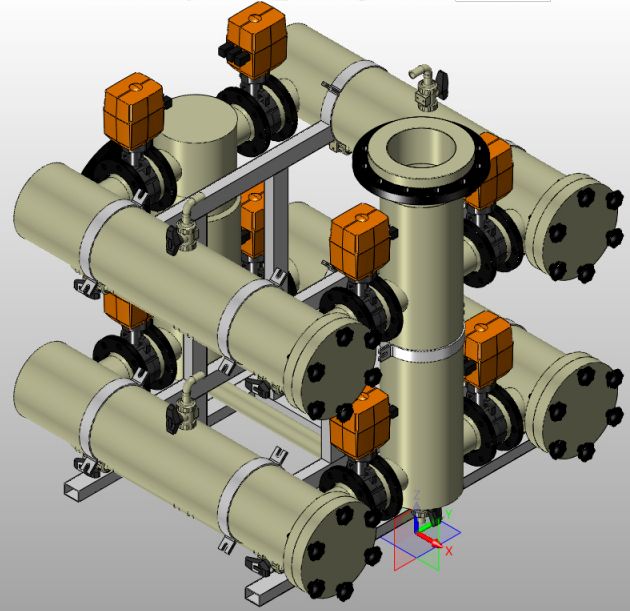

A modular system for replacing elements during the process. The system has electronic controlled valves for easy operation.

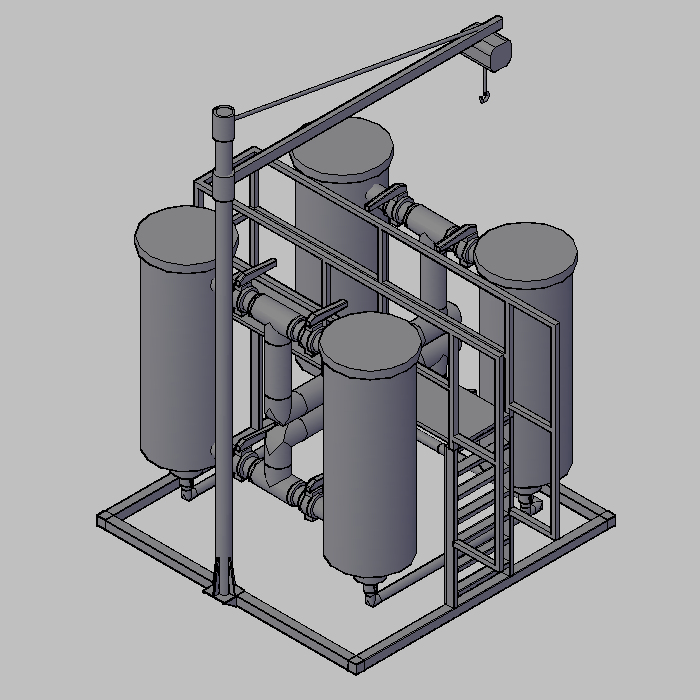

A simple solution to replace a complete filter pack. The dirty pack has a weight of approx. 120 kg. To remove the pack a lift construction was developed.

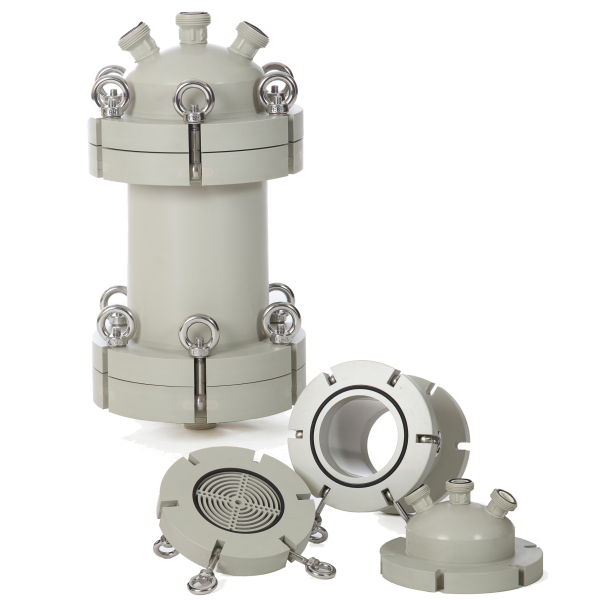

A stainless steel filter housing was used as an example for a plastic housing. Stainless steel was not suitable because of the chemical properties of the medium. The housing must both withstand an overpressure of 10 bar and an absolute vacuum.

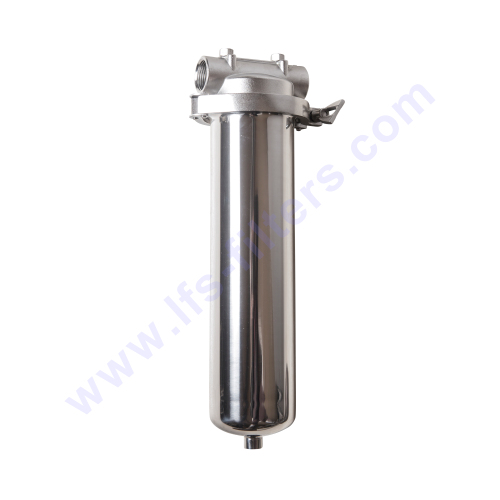

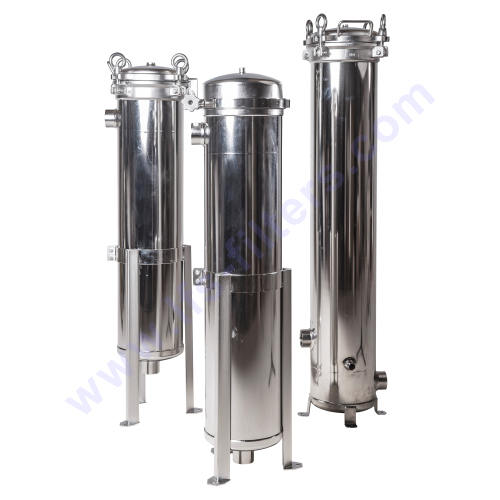

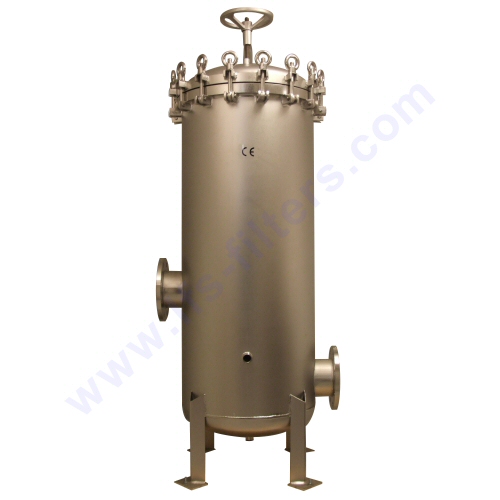

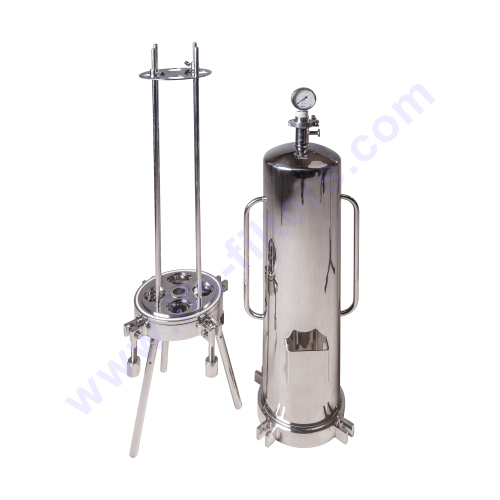

Stainless steel filter housings

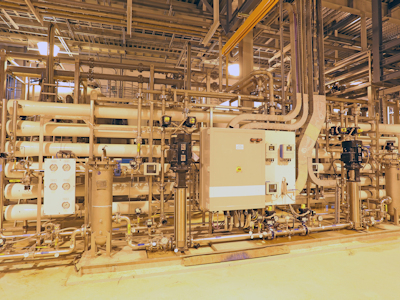

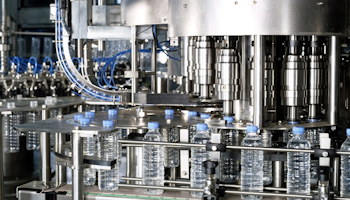

Besides plastic housings LFS has an extensive program stainless steel housings. They are used in various industries such as water treatment, chemistry, pharmaceutical and food and beverage. The housing surface can have various treatments.

Further info..

Surface treatment housings:

  • Industrial execution
  • Sandblasted
  • Electropolished
  • Eachined polished

Materials and coatings

  • AISI 304
  • AISI 316
  • AISI 316L
  • Hastelloy
  • Coatings:
  • Halar
  • PP
  • ETFE
  • PVDF
  • PFA

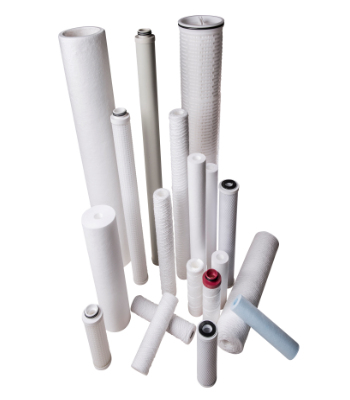

Filter elements



LFS produces wound, meltblown and pleated elements. For the various connections we have our own injection molding department.

Advantages:

  • Extensive selection
  • Flexible
  • Possibilities for own codes
  • Complete OEM products
filter elementen

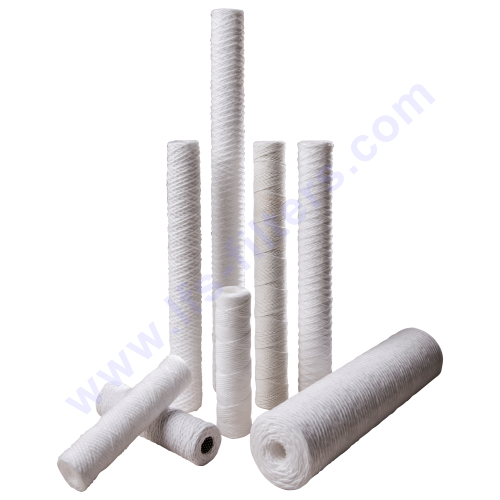

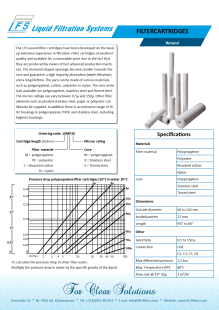

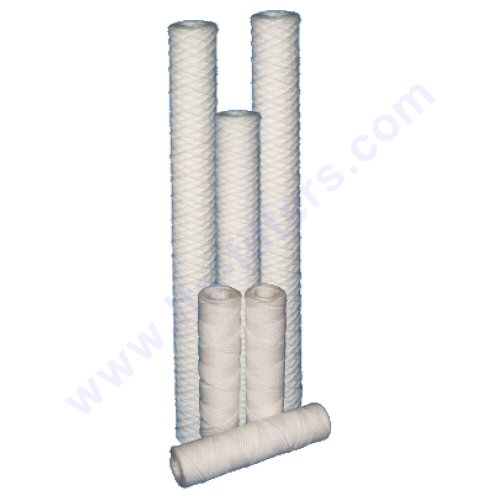

wound filter cartridge

On the most up to date electronic machines we manufacture wound filter cartridges in various materials and with choice of various core possibilities. The diamond shaped openings become smaller towards the core and guarantee a true depth filtration and large dirt holding capacity.

Further info..

Advantages:

  • All materials are in conformity with the FDA 21 CFR 177.1520 standard
  • All materials comply with the EC 10/2011 standard
  • Cheap and simple solution for many applications
  • Own production so flexible in delivery

Technical details:

Material PP, cotton, polyester, nylon
Core PP, AISI 304, AISI 316
Cartridge length 9¾" till 60"
Selectivity 0,5 till 150 micron
Connections DOE, C2, C3, C7, C8
Max. temperature 80°C till 120°C

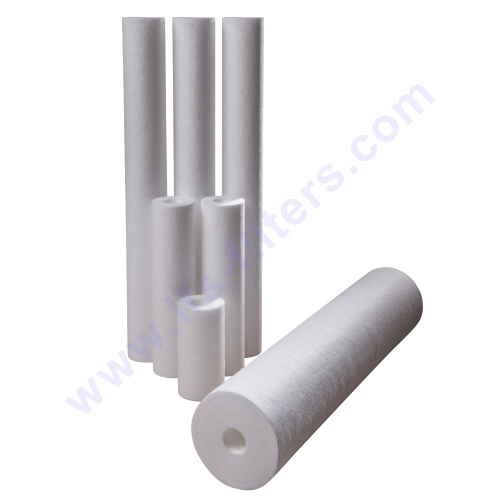

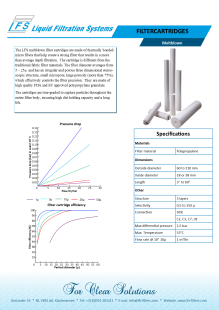

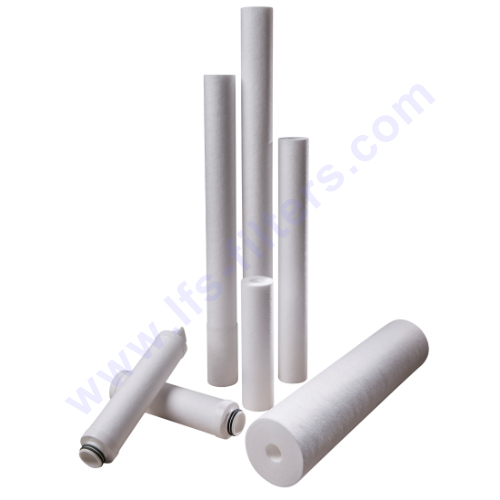

Meltblown

The LFS meltblown filter cartridges are made of thermally bonded micro fibers. The three dimensional sterioscopic structure results in a high efficiency filter cartridge. The three layer constructure guarantees an exceptional high dirt capacity.

Further info..

Advantages:

  • All materials are in conformity with the FDA 21 CFR 177.1520 standard
  • All materials comply with the EC 10/2011 standard
  • 3 layer structure
  • Cheap and simple solution for many applications
  • Own production so flexible in delivery
  • Higher temperature possible by using a support core (80°C)

Technical details:

Material PP
Diameter 60 till 110 mm
Cartridge length 5" till 60"
Selectivity 0,5 till 150 micron
Connections DOE, C2, C3, C7, C8
Max. temperature 55°C

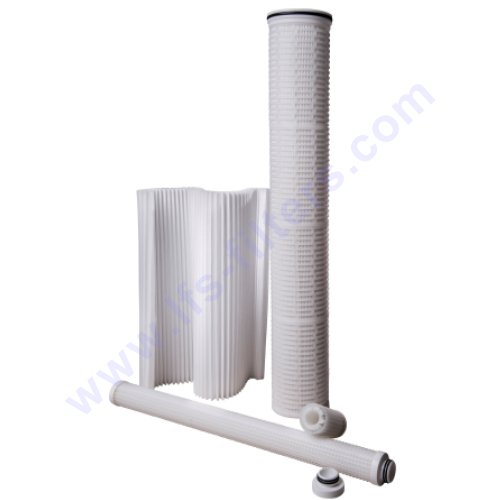

Pleated

LFS produces pleated filterelements. Beside a standard range also Highflow elements and specials are produced. Cooperation with well known manufacturers of filtermedia makes a solution possible for almost any application.

Further info..

Advantages:

  • Large choice of filter materials
  • Good price quality ratio
  • High flow large dirt holding capacity
  • Available with various connections
  • Possibility to make custommade cartridges

Materials:

  • PP
  • Glasfibre
  • PES
  • Nylon
  • Hydrophobic PTFE
  • Hydrophilic PTFE
  • Hydrophobic PVDF
  • Hydrophilic PVDF

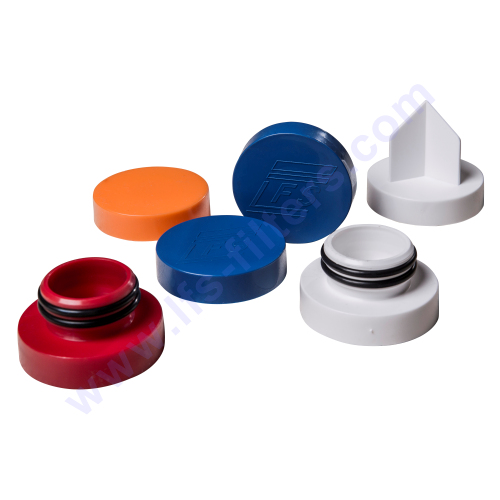

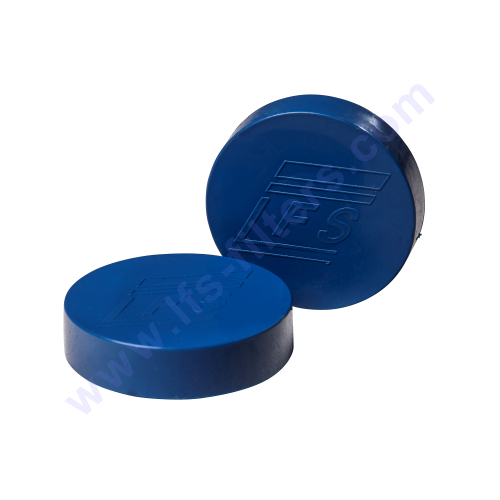

Adaptors

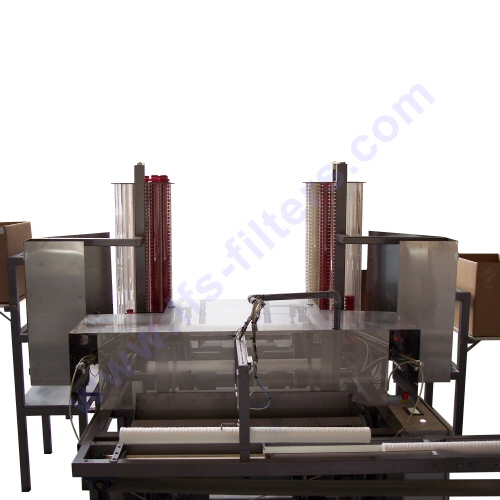

The filter cartridges can be supplied wiith various adaptors such as DOE, code 3, code 7 and code 8. The adaptors are welded on the cartridges by means of a special developed machine. LFS has an own injection molding department resulting in a large fexability in the production of adaptors. Your own logo and your own color can be realised.

Further info..

Advantages:

  • All materials are in conformity with the FDA 21 CFR 177.1520 standard
  • All materials comply with the EC 10/2011 standard
  • Own logo on adaptor
  • Own production so flexible in delivery

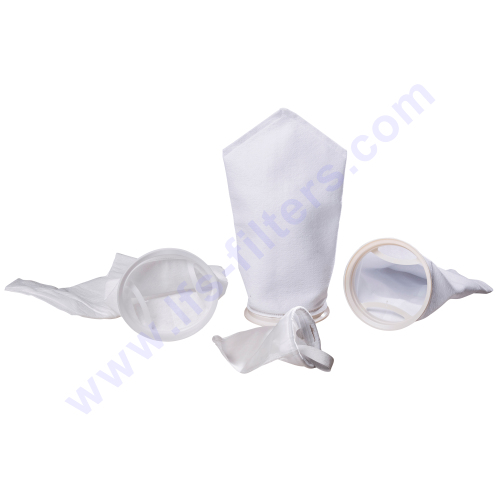

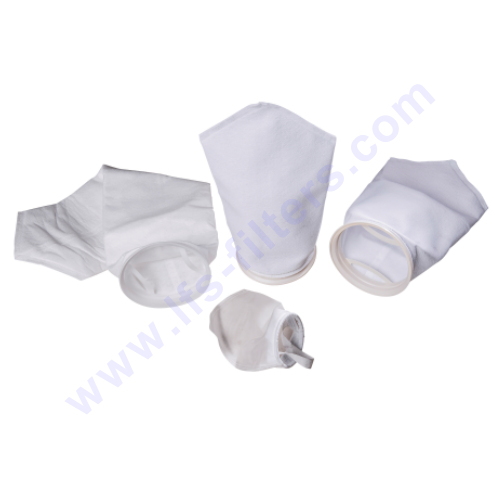

Filterbags

LFS supplies filterbags of excelent quality fitting all standard housings. Filterbags are aviable in traditional stitched or fully welded execution. By using selective materials LFS filterbags belong to the best available. All filterbags are silicon free and food grade approved.

Further info..

Advantages:

  • All materials are in conformity with the FDA 21 CFR 177.1520 standard
  • All materials comply with the EC 10/2011 standard
  • Special sizes possible
  • Extensive material choice

Technical details:

Material needlefelt Polyester (PE)
Polypropylene (PO)
Polytetrafluoretheen (PTFE)
Aramide (AF)
Nylon (NF)
Nomex (N)
Ryton (R)
Material mesh Polyester (PEMO)
Polypropylene (PPMO)
Nylon (NMO)
Micronrating 0,5 till 2000 micron
(depending on type of material)
Ring Tinned steal
AISI
Polypropylene sentinel
Polyester sentinel
Santroprene sentinel
Polyloc
Max. temperature Polypropylene (90°C)
Nylon (110°C)
Polyester (140°C)
PTFE (250°C)

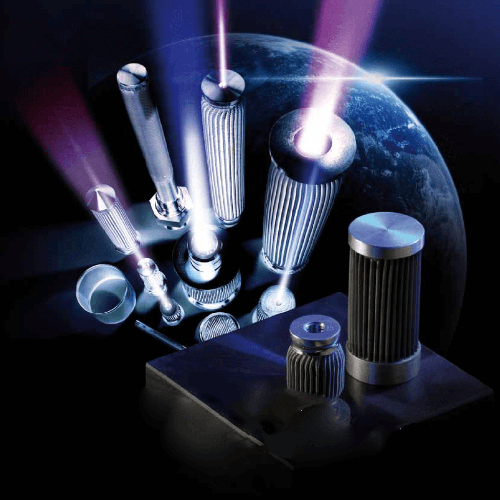

Microfilter

In 2017 LFS obtained the representation of Microfilt GmbH. Microfilter is specilised in high quality stainless steel filterelements suitable for many industrial applications.

Further info..

Extensive information can be found on the Microfilt site www.microfilter.de

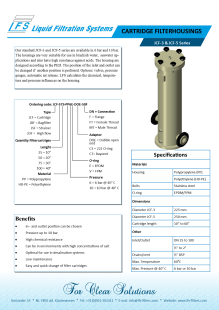

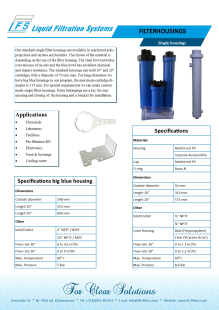

Downloads



Here you find the most popular brochures of our products. Is the product you are interested in not shown please contact us. We will send it to you.
